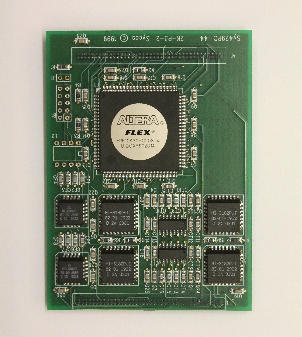

The Sy429PCI-RT44 is an ARINC-429 interface module with 4 Tx and 4 Rx channels for use with the general purpose PCI interface cards SyPCI-M2 and SyPCI-M4. When the module is installed onto one of these cards, the combined unit provides the following features:


- 4 ARINC-429 Transmit Channels

- 4 ARINC-429 Receive Channels

- 1k x 4 byte Cyclic Data Buffer per channel

- PCI Interface

- Individual configuration of high and low speed   operation all receive and transmit channels

- Automatic transmit waveform shaping for   speed selected

- Choice of odd, even or no parity

- Internal loopback for test purposes, with driver   output inhibit

- PCI interrupts can be triggered on the reception   of ARINC-429 data




User Installable 4Tx, 4Rx Module

Sales Ref: Sy429PCI-RT44



Features


- 4 ARINC-429 Transmit Channels


- 4 ARINC-429 Receive Channels


- 1k x 4byte Cyclic Data Buffer per channel


- Individual channel speed selectable


- Choice of Odd, Even or No Parity


- Internal Loop-back for test purposes


- Interrupts on received ARINC-429 data
