Home > Products > ARINC 429 > PCI > RT24

This range of Arinc-429 PCI interfaces provides the user with fixed configurations:


- Sy429PCI-RT44 (4Tx, 4Rx)

- Sy429PCI-RT88 (8Tx, 8Rx)

- Sy429PCI-RT24 (12Tx, 12Rx)

- Sy429PCI-RT32 (16Tx, 16Rx)


The card is 100% hardware and software backwards compatible with Sycos’ full length PCI carrier card with up to 4 RT44 modules installed, in a half length PCI-X interface format.

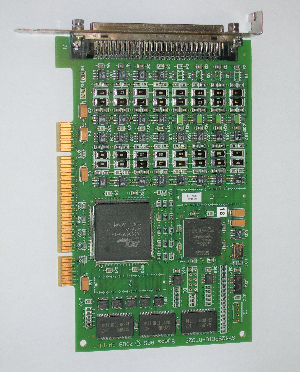

The image below is a card configured with 12Tx and 12Rx channels.


- 1k x 4 byte Cyclic Data Buffer per channel


- PCI Interface


- Individual configuration of high and low speed   operation all receive and transmit channels


- Automatic transmit waveform shaping for speed   selected


- Choice of odd, even or no parity


- Internal loopback for test purposes, with driver   output inhibit


- PCI interrupts can be triggered on the reception of   ARINC-429 data


Fixed Configuration Products

Sales Ref: Sy429PCI-RT24



Features


- Configured with 4, 12, 16 or 32 channels


- Minimum 4 ARINC-429 Transmit Channels


- Minimum 4 ARINC-429 Receive Channels


- 1k x 4byte Cyclic Data Buffer per channel


- Individual channel speed selectable


- Choice of Odd, Even or No Parity


- Internal Loop-back for test purposes


- Interrupts on received ARINC-429 data
