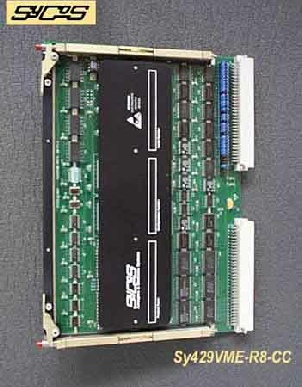

The Sy429VME-R8-CC card is a high performance ARINC 429 to VMEbus interface card providing 4 transmit and 8 receive channels capable of simultaneous operation at the maximum rate without loss of data or interrupts. The card is built to IEEE1101.2 Conduction Cooled VME format and is fitted with Wedge-Locks.


This high performance with 12 communication channels is achieved through the use of hardwired logic, which responds rapidly to system events, manages data transfers to and from the on board memory and provides continuous status information and host interrupts when needed.


The card is programmed by the host processor via a few directly addressable control registers. Once set up, the host processor need only write transmit data to the board and, when required, read received data addressed by channel, label, SDI and SSM.

Conduction Cooled 2Tx, 4Rx Product

Sales Ref: Sy429VME-R8-CC



Features


- High Integrity


- 8 Receive Channels


- 4 Transmit Channels


- Loop-back Test Mode


- Versatile Interrupt Facility


- VMEbus Interface A24, D16


- Ruggedized Version Available


- 256 ARINC word deep FIFO Buffer per

  Tx Channel


- Dual Port Rx Data Buffer addressed by

  Channel, Label, SDI and SSM.
