Home > ARINC 429 Products > PCI Products > Sy429PCI-R8

Data Sheet

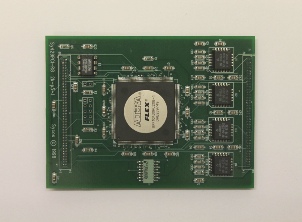

ARINC 429 PCI User Installable Receiver Module

The Sy429PCI-R8 is an ARINC-429 interface module with 8 Rx channels for use with the general purpose PCI interface cards SyPCI-M2 and SyPCI-M4. When the module is installed onto one of these cards, the combined unit provides the following features:


- 8 ARINC-429 Receive Channels

- 1k x 4 byte Cyclic Data Buffer per channel

- PCI Interface

- Individual configuration of high and low speed operation all receive channels

- Choice of odd, even or no parity

- PCI interrupts can be triggered on the reception of ARINC-429 data


Sales Ref: Sy429PCI-R8





Features


- 8 ARINC-429 Receive Channels


- 1k x 4byte Cyclic Data Buffer per channel


- Individual channel speed selectable


- Choice of Odd, Even or No Parity


- Interrupts on received ARINC-429 data
