Data Sheet

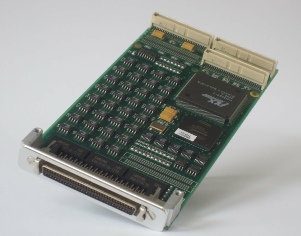

ARINC 429 PMC Transmitter Product

Sycos ARINC 429 PMC Transmitter module offers the user up to 32 Transmitter channels on a single width PMC module.


Each channel is supported with a pair of Cyclic-Data-Buffers each of which are 1k deep and 32bits wide. One for data words and one for 16-bit transmit time gap words. Deeper buffers are available as an option.


ARINC Input/Output is via a 68 pin SCSI connector on the PMC module faceplate. External Clock and Sync inputs are from the PMC I/O connector. Provision is made for a Connector Identification Code to be read from the connector.


ARINC 575 is software selectable per channel.


Firmware options are available to enhance the functionality of the product to realise an extremely sophisticated simulation and testing facility. Refer to the product data sheet for details.


Other PMC modules supporting ARINC-575 and the six wire buses of ARINC-561, 568, 571 and 582 are available.


Sales Ref: Sy429PMC-T32E





Features


- Arinc-429 compatible

- Choice of 8,16, 24 qnd 32 channel modules

- Direct access to Cyclic Data Buffer Read/Write

  Pointers

- 1k deep 4byte wide Cyclic Data Buffer per   channel

- PCI interrupts on Module Events

- Direct access to Module Registers and

  Application Memory

- Windows XX drivers and software tools

- Arinc Input/Output via 68 pin SCSI on faceplate
